WiFi 802.11ac and Bluetooth® 4.2 Mini USB Adapter – LM845
The LM845 Mini USB Adapter (Dongle) complies with Bluetooth® 4,2 (Dual Mode) and IEEE 802.11ac WiFi Standards of operation.
Using a fully integrated single-chip that supports 1-stream 802.11ac solutions with Multi-user MIMO (Multiple-Input, Multiple-Output).
[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]
-
Tech Spec
Additional Information
Wireless Standard Backward Compatibility Frequency 2.4 GHz and 5 GHz
Adapter Type Host Controller Interface (HCI)
Interfaces - USB
Antenna IC Antenna

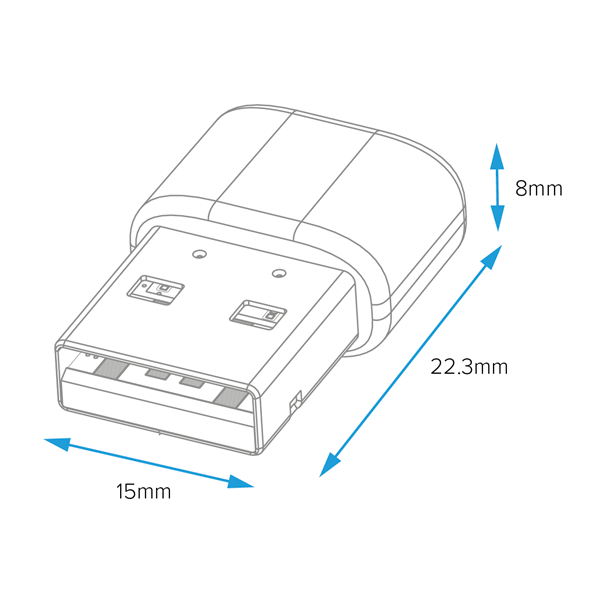

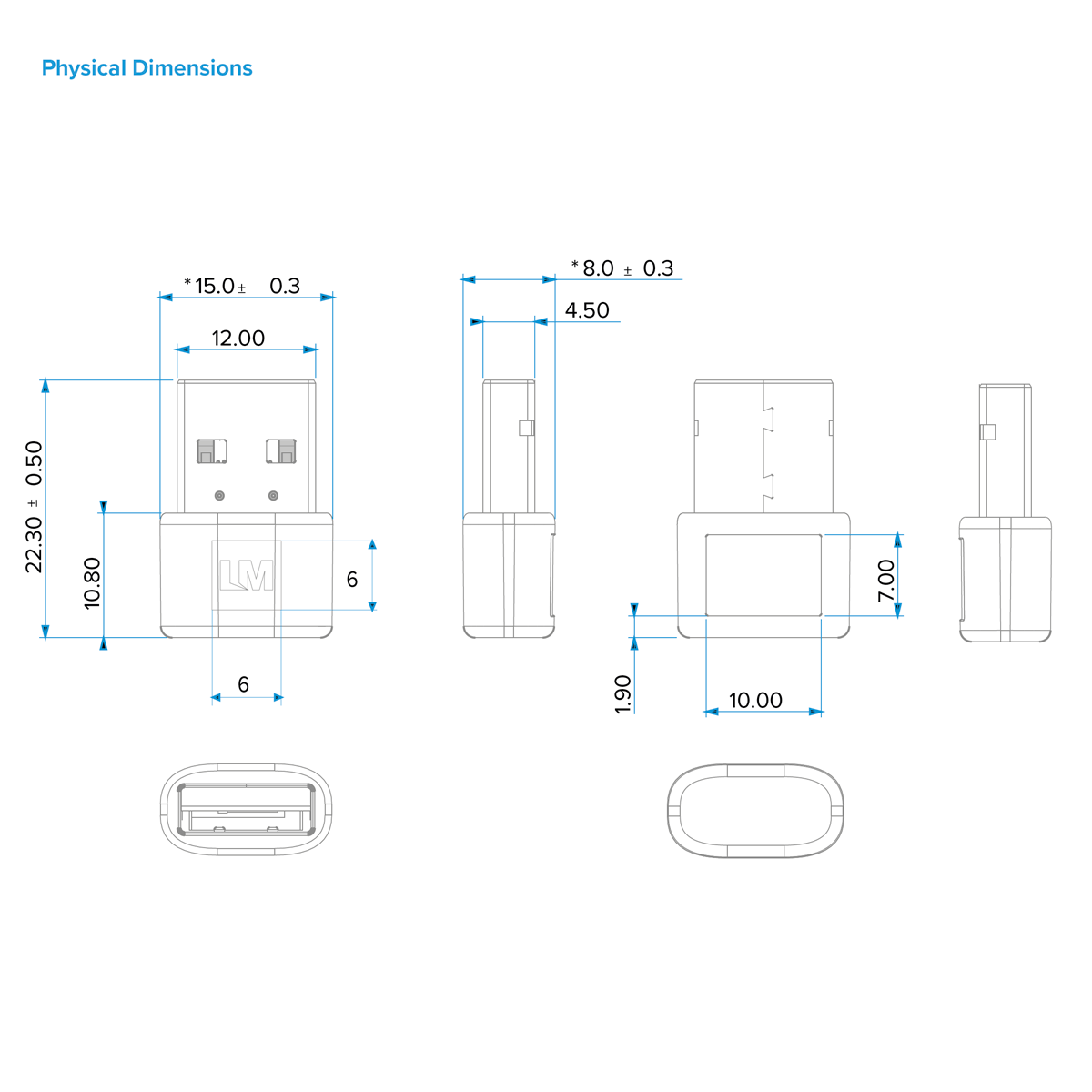

Dimensions - 22.3mm x 15mm x 8mm
Weight - 1.97g +/- 0.25g tolerance
Operating Temperature - 0°C to +50°C
Bluetooth Technology Bluetooth Classic, Bluetooth Low Energy (LE)
Compatibility Compliance Certifications -
-
Description
This adapter operates under 2.4GHz and 5Ghz. LM845 is compliant to IEEE 802.11ac /a/b/g/n and Bluetooth® v4.2, with backward compatibility with Bluetooth® v2.1+EDR, and v3.0. Bluetooth® Low Energy (LE) can operate simultaneously. Classic and LE can operate simultaneously.
The Realtek IC uses a USB main interface and offers high throughput for both WiFi and Bluetooth® connections, connected via a (HCI) USB 2.0 TYPE A interface. The LM845 provides a complete solution for a high-performance wireless client, it also supports WiFi Direct that can easily be used to build a WiFi P2P PAN network.
Bluetooth® includes EDR transmission and supports bandwidths up to 2Mbps, or in HS Mode up to 3Mbps. -
Features
- WiFi 802.11ac abgn
- WiFi 1T1R path, OFDM support.
- 802.11ac MIMO solution for 5G band. WiFi High Speed 433Mbps
- Bluetooth® 4.2 Dual Mode
- Backward Compatible including v2.1+EDR. LE can operate simultaneously.
- 2.4 GHz and 5 GHz ISM Frequency Bands. USB 2.0 Specification.
- Power Supply USB / 5V DC.
- 1T1R 802.11n 2.4 GHz WiFi speed up to 10 Mbps data rate. 1T1R 802.11ac 5 GHz WiFi speed up to 433
- Mbps data rate. Bluetooth® RF Output Power 6dBm max.
- Supports Dual Mode (BR/EDR+AMP+Low Energy Controllers. Supports Multi-User MIMO
- Supports WPA, WPA2
- Supports WiFi Direct, easily build a WiFi P2P PAN network. Supported for Linux, Android, Windows 7, 8, 8.1 and 10
- CE / SIG Certification.
- RoHS, REACH and WEEE Compliant Solution
Case Studies
PCN: LM808
A PCN (Product Change Notification) has been issued for our LM808 series product. Model: 808-0402, 808-0404 Effective: 11th December 2024 Download PCN: PCN03010
Resources
Access all the information for our products - some documentation my require an account to access.
This adapter operates under 2.4GHz and 5Ghz. LM845 is compliant to IEEE 802.11ac /a/b/g/n and Bluetooth® v4.2, with backward compatibility with Bluetooth® v2.1+EDR, and v3.0. Bluetooth® Low Energy (LE) can operate simultaneously. Classic and LE can operate simultaneously.
The Realtek IC uses a USB main interface and offers high throughput for both WiFi and Bluetooth® connections, connected via a (HCI) USB 2.0 TYPE A interface. The LM845 provides a complete solution for a high-performance wireless client, it also supports WiFi Direct that can easily be used to build a WiFi P2P PAN network.
Bluetooth® includes EDR transmission and supports bandwidths up to 2Mbps, or in HS Mode up to 3Mbps.
Additional information
| Wireless Standard | |
|---|---|
| Backward Compatibility | |
| Frequency | 2.4 GHz and 5 GHz |
| Adapter Type | Host Controller Interface (HCI) |
| Interfaces |
|
| Antenna | IC Antenna |
| Dimensions |
|
| Weight |
|
| Operating Temperature |
|
| Bluetooth Technology | Bluetooth Classic, Bluetooth Low Energy (LE) |
| Compatibility | |
| Compliance | |
| Certifications | |
