Bluetooth® v4.1 low energy Module with IPEX – LM930

£100.00

LM930 is a Bluetooth® low energy module that runs it’s own host stack under the Bluetooth® v4.1 specification.

[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM930_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’Development Kit’ link=’manually,https://www.lm-technologies.comproduct/bluetooth-smart-development-and-evaluation-product-family-lm53x/’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

Available: Out of stock

  • Tech Spec

    Additional Information

    Wireless Standard
    • BT 4.1
    Module Type
    • Programmmable (Configurable with CS Keys)
    Frequency

    2.4 GHz

    Profiles

    GATT-Based

    Interfaces
    • I2C
    • UART
    Programming Interface

    SPI

    Antenna

    IPEX Receptical

    Dimensions

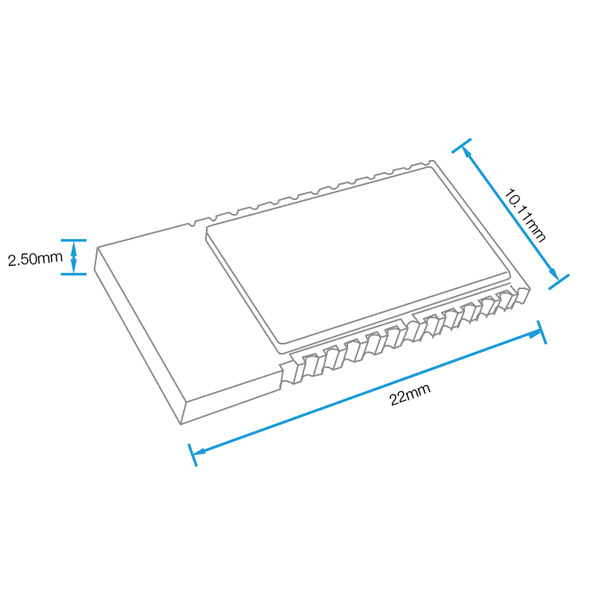

    • 22mm x 10.11mm x 2.50mm
    Tx Output Power
    • 9dBm (Maximum)
    Rx Sensitivity
    • -92dBm (Typical)

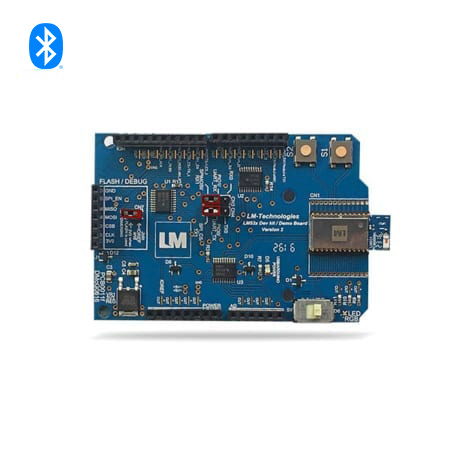

    Development Kit

    LM53X

    Weight
    • 0.88g +/- 0.25g tolerance
    Operating Temperature
    • -30°C to +85°C
    Bluetooth Technology

    Bluetooth Low Energy (LE)

    Compliance
    • CCATS-ECCN
    • Reach
    • RoHS
    • WEEE
    Certifications
    • Bluetooth SIG - UK
    • CE-Europe-RED
    • FCC - United States
    • IC - Canada
  • Description

    The LM930 Bluetooth® low energy module is designed for use within embedded systems. It is implemented as a peripheral device within a product, while saving the developer valuable PCB space. The LM930 enables wireless communication with other nearby Bluetooth® low energy devices (e.g. iOS and Android) using a highly power efficient connection. The transmission output power ranges from 0 dBm to 9 dBm and can be configured to provide an extended battery life or a longer communication range. This single core standalone module combines a Bluetooth® low energy radio using a Bluetooth® v4.1 stack, plus a microcontroller with 512 kB EEPROM for running the application. The LM930 incorporates 27 pin outs including UART and I2C for interfacing with a wide range of peripheral devices like sensors. It’s SMT side and bottom pads allow for easy manufacture and placement into your product. Application firmware and configuration settings can be preloaded to the module before supply. LM offer bespoke integration into your product by supporting your developer. We can also assist in the development of new IoT applications for the module. IoT applications such as Serial over GATT, iBeacon™ and Key Fob (with RGB LED Controller) are available with the module’s LM53X development kits. The firmware is customisable to meet your requirements.

    Bluetooth® v4.1 low energy module with IPEX - LM930

    The IPEX connector provides the developer with the flexibility to add an antenna that suits the products unique requirements, such as dipole, IC or PCB antenna types. The selected antenna can be placed anywhere on the product, which is useful for avoiding any metallic surfaces of the product housing and a noisy environment of the product’s PCB. Depending on the antenna used a longer range, omnidirectional or unidirectional RF signal is produced.
  • Features

    • Over-the Air Upgrade (OTAU) available
    • Firmware development support
    • IoT Applications Available (e.g: Cloud Sensor & Cloud Connector, Eddystone Beacon™, Serial Over GATT)
    • Fully integrated module with no additional components required
