Bluetooth® v4.1 low energy Module with IC Antenna – LM931
£100.00
LM931 is a Bluetooth® low energy module that runs it’s own host stack under the Bluetooth® v4.1 specification.
[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM931_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]
[av_button label=’Development Kit’ link=’manually,https://www.lm-technologies.comproduct/bluetooth-smart-development-and-evaluation-product-family-lm53x/’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]
[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]
Available: Out of stock
-
Tech Spec
Additional Information
Wireless Standard Module Type - Programmmable (Configurable with CS Keys)
Frequency 2.4 GHz
Profiles GATT-Based
Programming Interface SPI
Interfaces - I2C
- UART
Antenna IC Antenna
Tx Output Power - 9dBm (Maximum)
Rx Sensitivity - -92dBm (Typical)

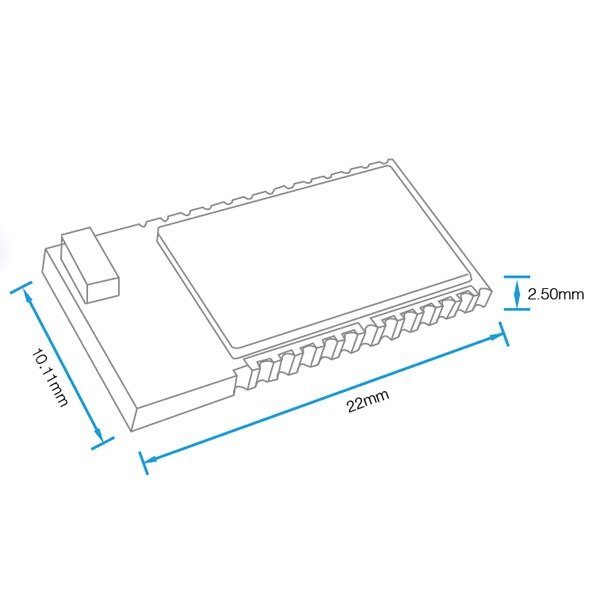

Dimensions - 22mm x 10.11mm x 2.50mm
Weight - 0.87g +/- 0.25g tolerance
Operating Temperature - -30°C to +85°C

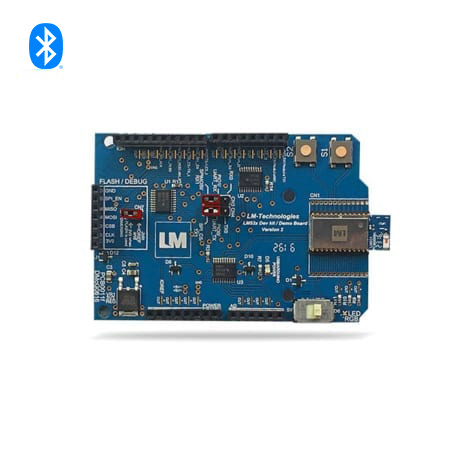

Development Kit LM53X
Bluetooth Technology Bluetooth Low Energy (LE)
Compliance Certifications -
-
Description
The LM931 Bluetooth® low energy module is designed for use within embedded systems. It is implemented as a peripheral device within a product, while saving the developer valuable PCB space. The LM931 enables wireless communication with other nearby Bluetooth® low energy devices (e.g. iOS and Android) using a highly power efficient connection. The transmission output power ranges from 0 dBm to 9 dBm and can be configured to provide an extended battery life or a longer communication range. This single core standalone module combines a Bluetooth® low energy radio using a Bluetooth® v4.1 stack, plus a microcontroller with 512 kB EEPROM for running the application. The LM931 incorporates 27 pin outs including UART and I2C for interfacing with a wide range of peripheral devices like sensors. It’s SMT side and bottom pads allow for easy manufacture and placement into your product. Application firmware and configuration settings can be preloaded to the module before supply. LM offer bespoke integration into your product by supporting your developer. We can also assist in the development of new applications for the module. IoT Applications such as Serial over GATT, iBeacon™ and Key Fob (with RGB LED Controller) are available with the module’s LM53X development kits. The firmware is customisable to meet your requirements.Bluetooth® low energy applications
The LM931 standalone module is capable of running your Bluetooth® low energy application. Requiring no external hardware and supports a wide range of applications such as:- Alert tag
- Automotive key fob
- Beacon
- Blood pressure sensor
- Cycling speed and cadence sensor
- Environment sensor
- Health thermometer
- Heart rate sensor
- Keyboard & Mouse
- Multifunction steering wheel
- Security tag
- Serial communication
- Time client
- Temperature and pressure
- Weight scale
-
Features
- Over-the Air Upgrade (OTAU) available
- Firmware development support
- IoT Applications Available (e.g: Cloud Sensor & Cloud Connector, Eddystone Beacon™, Serial Over GATT)
- Fully integrated module with no additional components required
- Small footprint
Case Studies
Lead Times Update 09 May 2024
LM Technologies is continuously liaising with suppliers to reduce any lead times where possible. We have updated lead times for new orders for the following products: LM506 – 10 Weeks…
Resources
Access all the information for our products - some documentation my require an account to access.
The LM931 Bluetooth® low energy module is designed for use within embedded systems. It is implemented as a peripheral device within a product, while saving the developer valuable PCB space. The LM931 enables wireless communication with other nearby Bluetooth® low energy devices (e.g. iOS and Android) using a highly power efficient connection. The transmission output power ranges from 0 dBm to 9 dBm and can be configured to provide an extended battery life or a longer communication range.
This single core standalone module combines a Bluetooth® low energy radio using a Bluetooth® v4.1 stack, plus a microcontroller with 512 kB EEPROM for running the application. The LM931 incorporates 27 pin outs including UART and I2C for interfacing with a wide range of peripheral devices like sensors. It’s SMT side and bottom pads allow for easy manufacture and placement into your product. Application firmware and configuration settings can be preloaded to the module before supply.
LM offer bespoke integration into your product by supporting your developer. We can also assist in the development of new applications for the module. IoT Applications such as Serial over GATT, iBeacon™ and Key Fob (with RGB LED Controller) are available with the module’s LM53X development kits. The firmware is customisable to meet your requirements.
Bluetooth® low energy applications
The LM931 standalone module is capable of running your Bluetooth® low energy application. Requiring no external hardware and supports a wide range of applications such as:
- Alert tag
- Automotive key fob
- Beacon
- Blood pressure sensor
- Cycling speed and cadence sensor
- Environment sensor
- Health thermometer
- Heart rate sensor
- Keyboard & Mouse
- Multifunction steering wheel
- Security tag
- Serial communication
- Time client
- Temperature and pressure
- Weight scale
Additional information
| Wireless Standard | |
|---|---|
| Module Type |
|
| Frequency | 2.4 GHz |
| Profiles | GATT-Based |
| Programming Interface | SPI |
| Interfaces |
|
| Antenna | IC Antenna |
| Tx Output Power |
|
| Rx Sensitivity |
|
| Dimensions |
|
| Weight |
|
| Operating Temperature |
|
| Development Kit | LM53X |
| Bluetooth Technology | Bluetooth Low Energy (LE) |
| Compliance | |
| Certifications | |
