£100.00
Bluetooth® Multimedia Development Kit – LM558 can be used with our LM746 Module which offers Audio functionality and can be used with other Multimedia products.
Available: Out of stock
| Dimensions |
|
|---|---|
| Weight |
|
| Product Type | USB 2.0 (Power), Parallel Port, Serial Port, PIO (Push Buttons) |
| Module Compatibility | LM746 |
| Compliance | |
A PCN (Product Change Notification) has been issued for our LM808 series product. Model: 808-0402, 808-0404 Effective: 11th December 2024 Download PCN: PCN03010
Access all the information for our products - some documentation my require an account to access.
[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’ISO9001 Declaration’ tags=”]
[/av_toggle]
[av_toggle title=’REACH, RoHS, WEEE Compliance’ tags=”]
[/av_toggle]
[/av_toggle_container]
Please use the Enquire tab to discuss certification.

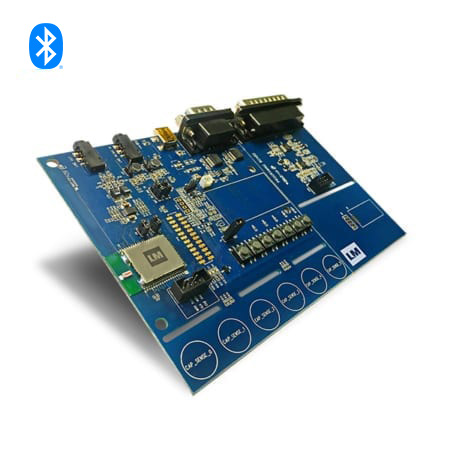

Bluetooth® Multimedia Development Kit – LM558
The LM558 can be used with our LM746 Audio Module which offer a range of Audio functionality and can be used with other Multimedia functions.
Often the first chance LM Technologies has of demonstrating the value of our company and the quality of our products will be when your engineers test our modules, when using the Bluetooth® Multimedia Development Kit. For this reason, LM offers a very professional support service, which is all free of charge for customers considering our modules.
This service includes free integration of commands, free additional development on an existing platform or in helping your team understand our product and its firmware. In addition to our support we also offer a full refund for the cost of the Bluetooth® Multimedia Development Kit to all customers who go on to use our modules within their product with a minimum order of a 100 modules.
Bluetooth® Multimedia Development Kit – LM558 is ideal for evaluating our LM746 audio module as it provides access to: Serial port, PIO, LED Indications, Analog IO and PCM/I2S interface.
Battery pads are available for connecting an external battery and Jumper connections allow easy configuration and to use the Bluetooth® Multimedia Development kit in different modes.
It can also be used to evaluate different firmware revisions – AT Command, PIO, A2DP Speakers etc. All of which can be upgraded via SPI or USB from the Bluetooth® Multimedia Development Kit. Please ask our development team before purchasing so that we can supply your module of choice along with the Bluetooth® Multimedia Development Kit.
| Dimensions |
|
|---|---|
| Weight |
|
| Product Type | USB 2.0 (Power), Parallel Port, Serial Port, PIO (Push Buttons) |
| Module Compatibility | LM746 |
| Compliance | |
USER GUIDE
[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’LM558 User Guide v1.0′ tags=”]
[/av_toggle]
[/av_toggle_container]
NOTES
[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’Evaluation Board Schematic’ tags=”]
[/av_toggle]
[/av_toggle_container]
ECCN
[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’Export Control Classification Number’ tags=”]
Pending
[/av_toggle]
[/av_toggle_container]
[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’Harmonization Tariff Codes (HS Codes)’ tags=”]
[/av_toggle]
[/av_toggle_container]
* For any other product documentation please Contact Us
